商品の詳細:
|
| 傾き: | 90° | アラーム: | 運動検出,温度アラーム |
|---|---|---|---|
| 解決: | 640x480 | 保管温度: | -30°Cへの+70°C |
| ズーム: | 10倍光学ズーム | 画像出力: | HDMI USB |
| タイプ: | PTZの赤外線画像のカメラ | フレームレート: | 30のHZ |
| ハイライト: | 640x512 PTZ thermal camera,multi-sensor thermal imaging camera,IOT smart camera with warranty |
||

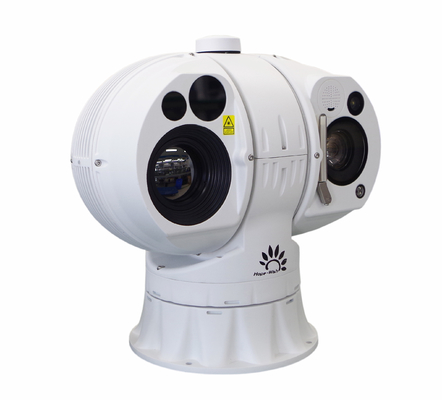

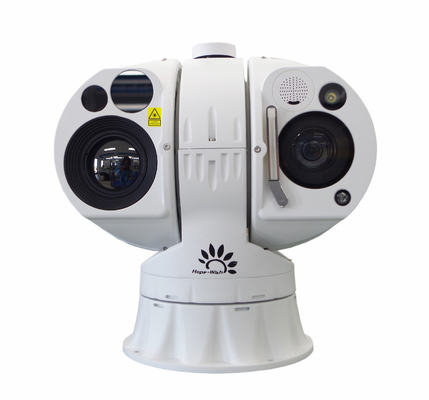

In summary, the PTZ Thermal Imaging Camera is a sophisticated and advanced surveillance device that combines the benefits of thermal imaging technology with the flexibility and functionality of a PTZ camera. With its 360° continuous rotation, high resolution, digital detail enhancement, and 10x optical zoom capabilities, this camera offers exceptional performance and reliability for long-range security surveillance applications. The thermal camera module integrated into this device ensures superior image quality and thermal imaging capabilities, making it a valuable asset for enhancing security and surveillance operations.
| Model | HP-DMS10-4300-50 |
| Detection |
vehicles:4200m human: 1640m fire point (@2x2m): 2000m |
| Recognition |
vehicles:1200m human: 600m |
| Thermal imaging Camera |
1.Detector: The sixth generation uncooled focal plane array VOx detector 2. Wavelength: 8～14μm 3. NETD:40mK(@25℃ F1.0) 4. Lens: 50mm 5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment 6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white 7.Image parameters: AGC automatic gain control, brightness, contrast 8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram 9. Ranging ruler: support for range finding ruler 10.Dead pixel correction: support the function of dead pixel correction 11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters 12.Strong light protection: support anti-sun damage 13.Non-uniformity correction: automatic/hand |
| Resolution |
Pixel:384×288 Field of view:7.5°×5.6° |
| Visible Camera |
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS 2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON) 3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom. 4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic. 5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light 6.Support electronic fog penetration and optical fog penetration |
|
Laser illuminator |
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles 2.Laser angle: 3°~65° switchable 3.Laser distance: 300m |
| Video audio |
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 3.Video encoding: H.265/H.264/MJPEG,multi-stream support 4.Video code rate:32Kbps～16Mbps 5.Audio encoding:G.711A/ G.711U/G726 6.Image flip: left and right / up and down / diagonal 7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Intelligent functions |
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking 2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function 3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking 4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion 5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function 6.Alarm management: support for alarm capture and upload |
| Enhanced Features |
1. Distance measurement: support passive distance measurement; support optional laser distance measurement. 2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization. 3. Support alarm linkage fire fighting device. 4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set). 5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc. 6. Support disconnection renewal. 7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state. 8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade. 9. Key frame setting: support key frame interval 100 levels adjustable. 10. Configuration file: support configuration file import and export function. 11. Web access: support WEB full function configuration, remote online upgrade. |
| PT |
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption. 2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90° 3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material. 4. Window glass: infrared/visible high efficiency optical glass, clean film coating. 5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion. 6. Wiper: support intelligent automatic wiper 7. Defrost: visible window defrost 8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions 9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan 10. Support 3D frame selection zoom 11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning 12. Zero point correction: support northward zero point remote correction function |
| Electrical interface |
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface. 2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols. 3. Development interface: Support HP-SDK secondary development |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Safety control |
1. Support illegal access alarm: the number of illegal access, lock time can be set.
|
| Power supply |
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
|
| Environmental adaptation |
1. Working temperature: -40℃～60℃
|
| Volume weight |
1. Weight: ≤10kg
|
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Hope-Wish HP-DMS PTZ Thermal Imaging Camera is a versatile and advanced surveillance tool designed for various product application occasions and scenarios. With its cutting-edge features and functionalities, this thermal IP camera is ideal for a wide range of industries and purposes.
One of the key product attributes of the Hope-Wish HP-DMS thermal PTZ camera is its tilt capability of 90°, allowing for flexible and precise monitoring of different angles and areas. Combined with its 360° continuous rotation pan feature, this camera provides comprehensive coverage and surveillance options.
Equipped with a powerful 10x optical zoom, the HP-DMS thermal infrared camera enables users to zoom in on specific details and objects with exceptional clarity and detail. This makes it perfect for applications that require close monitoring or long-range visibility.
Designed to withstand challenging environments, this thermal imaging camera has an operating temperature range of -20°C to +60°C, ensuring reliable performance even in extreme conditions. Whether used in hot or cold climates, the HP-DMS camera delivers consistent and high-quality thermal imaging.
For convenient image output and connectivity, the HP-DMS thermal camera supports HDMI and USB interfaces, allowing for easy integration with various display and recording devices. This makes it suitable for both indoor and outdoor installations, providing seamless data transfer and monitoring capabilities.
Overall, the Hope-Wish HP-DMS PTZ Thermal Imaging Camera is a versatile and reliable solution for a wide range of product application occasions and scenarios. Whether used for security surveillance, industrial monitoring, or research purposes, this thermal IP camera delivers exceptional performance and flexibility.
The PTZ Thermal Imaging Camera comes with comprehensive product technical support and services to ensure optimal performance and customer satisfaction.
Our technical support team is available to assist with any product-related queries, troubleshooting, and maintenance needs. We provide timely responses and solutions to help you make the most of your thermal imaging camera.
In addition to technical support, we offer a range of services such as installation assistance, training programs, and product updates to enhance your experience with the PTZ Thermal Imaging Camera.
Product Packaging:
The PTZ Thermal Imaging Camera is carefully packaged in a sturdy cardboard box to ensure safe delivery. The camera is securely placed within protective foam padding to prevent any damage during transit.
Shipping:
Orders for the PTZ Thermal Imaging Camera are processed within 1-2 business days. We offer standard and expedited shipping options to meet your needs. Once your order is shipped, you will receive a tracking number to monitor the delivery status of your package.
Q: What is the brand name of the PTZ Thermal Imaging Camera?
A: The brand name of the PTZ Thermal Imaging Camera is Hope-Wish.
Q: What is the model number of the PTZ Thermal Imaging Camera?
A: The model number of the PTZ Thermal Imaging Camera is HP-DMS.
Q: Where is the PTZ Thermal Imaging Camera manufactured?
A: The PTZ Thermal Imaging Camera is manufactured in China.
Q: Can the PTZ Thermal Imaging Camera be controlled remotely?
A: Yes, the PTZ Thermal Imaging Camera can be controlled remotely for pan, tilt, and zoom functions.
Q: What is the main feature of the PTZ Thermal Imaging Camera?
A: The main feature of the PTZ Thermal Imaging Camera is its thermal imaging capability, allowing for detection in low-light or no-light conditions.
