商品の詳細:
|
| 重さ: | 15KG | 検知範囲: | 5～10km |
|---|---|---|---|
| 解決: | 1920x1080 | パン: | N × 360°連続回転 |
| センサーの種類: | PTZ 熱力 | 温度範囲: | -40°C〜 +70°C |
| 傾き: | -45° 〜 + 90° | 最低の焦点の間隔: | 5～10km |
| ハイライト: | 3KW anti drone laser system,5-10KM drone detection system,border patrol laser damage system |
||

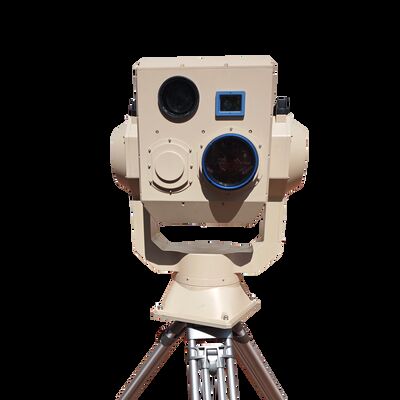

3KW intelligent laser damage system (hereinafter referred to as damage system), comprehensive use of high energy laser, electronic information, image processing and other technologies, to achieve intelligent recognition, high precision tracking, laser damage of far-field drone targets, balloons, birds, kites and other "low slow small" targets, to achieve rapid target disposal.
| Item | Specifications | Comments |
| High energy laser emission power | 3KW | |
| Beam quality M² | ≤1.5 | |
| Output fiber length | ≥2m | |
| Effective tracking distance | ≥600m | Taking DJI "Phantoms" as a typical target, under the condition of weak atmospheric turbulence |
| Ranging distance | ≥500m | |
| Effective damage distance | 100~500m | |
| Damage time | 5s～15s | Since the laser emitted until the target fall. (time influence by the target distance and atmospheric condition) |
| Target intelligent detection | Accuracy≥95% | Intelligent identification and tracking of drone targets under complex backgrounds (mountains, trees, buildings, etc.) |
| Target tracking accuracy | ≤15μrad(RMS) | |
| Continuous laser emission time | ≥60s | |
| Azimuth angle range | -90°～+90° | |
| Pitch angle range | -10°～+55° | |
| Maximum tracking speed | 60°/s | |
| Maximum tracking acceleration | 60°/s2 | |
| Tracking speed to ensure the accuracy | ≥20°/s | |
| Tracking acceleration to ensure the accuracy | ≥20°/ s2 | |
| Operating temperature | 0℃～+40℃ | Temperature control using shelter |
| Storage temperature | -20℃～+60℃ | For storage requirement, it is necessary to drain the cooling liquid |
| Other functions | Receive target guidance information; Feedback target position; Video recording; Remote control; System monitoring; System configuration | |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
