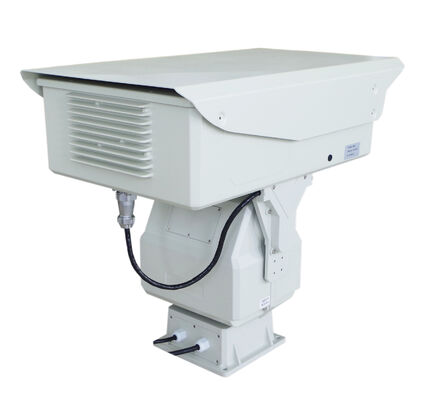

Dual Sensor Surveillance Camera PTZ Thermal Imaging Camera IP66 Weatherproof

Product Description:

The TTVC12110C-2150 dual-band camera is based on the latest six-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 1280×1024 resolution ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 70 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 8000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.

In addition to its imaging excellence, the PTZ Thermal Imaging Camera incorporates intelligent alarm functionalities to provide proactive security alerts. The motion detection alarm feature enables the camera to automatically detect and respond to any movement within its field of view, triggering instant notifications to security personnel. This capability significantly reduces the need for constant human monitoring and enhances response times during critical incidents. Moreover, the temperature alarm function monitors thermal thresholds and can alert users when abnormal heat patterns or temperature deviations are detected, which is particularly valuable in fire prevention and equipment monitoring scenarios.

To improve visual interpretation and adaptability across different environments, the camera supports 10 distinct pseudo color palettes. These color schemes translate thermal data into various color gradients, allowing users to select the most effective representation for their specific application. Whether highlighting hot spots in industrial inspections or identifying intruders in security operations, the customizable pseudo color options enhance the clarity and usability of thermal images.

Overall, the PTZ Thermal Imaging Camera is an advanced, reliable, and versatile solution that combines cutting-edge infrared camera module technology with durable design and intelligent features. Its IP66 rating ensures dependable outdoor performance, while the sensitive thermal detection and flexible output options make it suitable for a wide range of thermal imaging applications. With integrated motion detection and temperature alarms, along with customizable pseudo color settings, this thermal ptz camera delivers comprehensive monitoring capabilities that meet the evolving demands of modern security and industrial environments.

Features:

1. It integrates infrared thermal image, high-definition visible light, video coding, pan/tilt cover and control electronic system. It has integrated design, high concentration and easy installation and use.

2. The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow;

3. Unique AS optical design and high precision optomechanical design for superior image quality;

Excellent non-uniform image correction technology with good image uniformity and dynamic range;

4. SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targets;

5. Visible light is based on full HD color/black and white dual mode low illumination CMOS sensor design, 70 times compact continuous zoom lens, small size and light weight;

6. It adopts heavy-duty CNC pan/tilt, 360 continuous rotation observation, no dead angle, stable operation and small image jitter;

7. Support glare protection, anti-sun burn, support multi configuration scene mode, adapt to different occasions;

8. Support intelligent functions such as cross-border/intrusion detection and target tracking to achieve unattended duty;

9. Support hot spot detection and alarm, hot spot detection algorithm based on raw data of each frame at the front end, short response time, fast locking speed, accurate positioning, no delay, alarm threshold, target size and quantity can be set remotely;

10.Based on the IP network design, a network cable can realize the interactive transmission of all video, alarm data and positioning data. The system networking and implementation are simple;

11. The whole machine adopts super-strong aluminum alloy casing, IP66 protection, anti-rain, anti-dust, and can adapt to various harsh environments.

Technical Parameters:

Applications:

l Seaport and airport monitoring;

l Water system monitoring;

l Storage monitoring;

l MIL base security monitoring;

l Oilfield & oil depot security;

l Fire source prevention & monitoring;

l Ecological and environmental monitoring;

l Border and coastal defense;

l Urban security and anti-UAV applications;

l Highways and railways monitoring.
